Best Bench mortisers
top picks
Ranking
What’s in the Toolbox
tool
Good Points
tool overVIEW

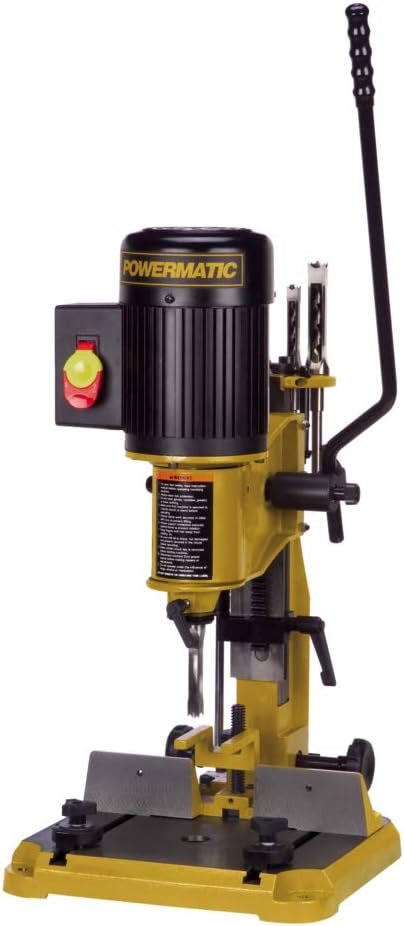

POWERMATIC (PM701) BEST Bench Mortiser OVERALL
The POWERMATIC Bench Mortiser (PM701) offers powerful performance with a 3/4 HP motor making it ideal for precise woodworking tasks. Designed for accuracy, it features an integrated bit and chisel spacer system ensuring quick and correct bit positioning. With a large table and fence this mortiser provides ample support allowing for stable cuts even during intricate projects. The spacious work surface enhances overall stability helping to create clean mortises with ease.
Conveniently designed for user friendliness, the POWERMATIC (PM701) includes a large, hinged chuck door with a magnetic catch making bit changes simple and hassle free. Its rack and pinion fence system provides smooth effortless adjustments ensuring your workpiece stays properly aligned. The double lock stock hold down system which secures both the top and side of the workpiece eliminates slippage even when handling thicker materials.
This mortiser is built with versatility in mind accommodating material thicknesses from zero to five inches thanks to its reversible hold down feature. The in-line depth stop ensures consistent results without the need for frequent adjustments. With a reversible handle that can be swapped easily, the POWERMATIC (PM701) is perfect for both left and right handed users offering comfort and control throughout any woodworking project.
features
POWERMATIC (PM701) BEST Bench Mortiser OVERALL
tool overVIEW

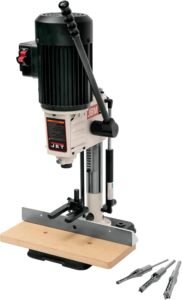

JET (JBM-5) Best Bench Mortiser RUNNER UP
The JET Bench Mortiser (JBM-5) is designed to deliver precise and reliable mortising results for both professionals and hobbyists. Its heavy duty cast iron and steel construction ensure durability and stability making it suitable for even the most demanding woodworking tasks. This compact but powerful tool can be conveniently mounted on a bench or used with an independent stand providing versatility in various workshop setups. The dependable rack and pinion head adjustment allows for accurate position control ensuring consistent results every time.
The JET (JBM-5) also offers user friendly features that enhance ease of operation. Its long multi-position mortising handle allows the user to reposition it for optimal leverage reducing fatigue during extended use. The three-jaw drill chuck firmly grips mortising bits with up to 10mm (3/8″) diameter shanks while two hinged side doors provide easy access for quick bit changes. The quick adjust depth stop guarantees uniform mortise depths for enhanced precision. Additionally, the reversible column enables mortising larger stock with ease. Powered by a robust 1/2 HP motor, the JET (JBM-5) ensures smooth and consistent performance. For added safety the removable On/Off toggle switch prevents unauthorized or accidental use making it a reliable and secure addition to any workshop.
features
JET (JBM-5) Best Bench Mortiser RUNNER UP
tool overVIEW

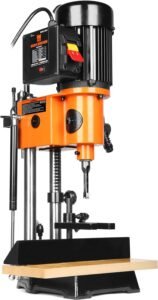

WEN (43013) Best Bench Mortiser ON A BUDGET
The WEN Bench Mortiser (43013) is a versatile and powerful tool designed to enhance your woodworking projects. Powered by a robust 5 Amp motor it delivers up to 1,725 RPM making quick work of even the hardest woods. The spacious chuck accommodates a range of bit sizes from 1.6mm (1/16”) to 13mm (1/2”) while the chisel bits accept sizes from 6mm (1/4”) to 13mm (1/2”) offering versatility for various mortising tasks. With a spindle travel of 108mm (4-1/4”) the machine allows for mortises up to 76mm (3”) deep making it ideal for creating sturdy long lasting joints.
The WEN (43013) is designed with user convenience in mind. Its 343mm (13-1/2”) by 152mm (6”) table provides ample workspace while the spring loaded cast iron fence enables both fine-tuned and large scale adjustments. The adjustable feed handle rotates freely to avoid collisions with your workpiece and resets quickly to your preferred start and stop points. For added precision the onboard depth stop ensures you won’t drill past the desired depth. This mortiser also includes a range of accessories such as three chisel bits 6mm (1/4”), 10mm (3/8”) and 13mm (1/2″), a chuck extension adapter and a 19mm (3/4″) chisel bushing. A two year warranty ensures reliability and long term satisfaction for any woodworking enthusiast.
features
WEN (43013) Best Bench Mortiser ON A BUDGET
tool overVIEW

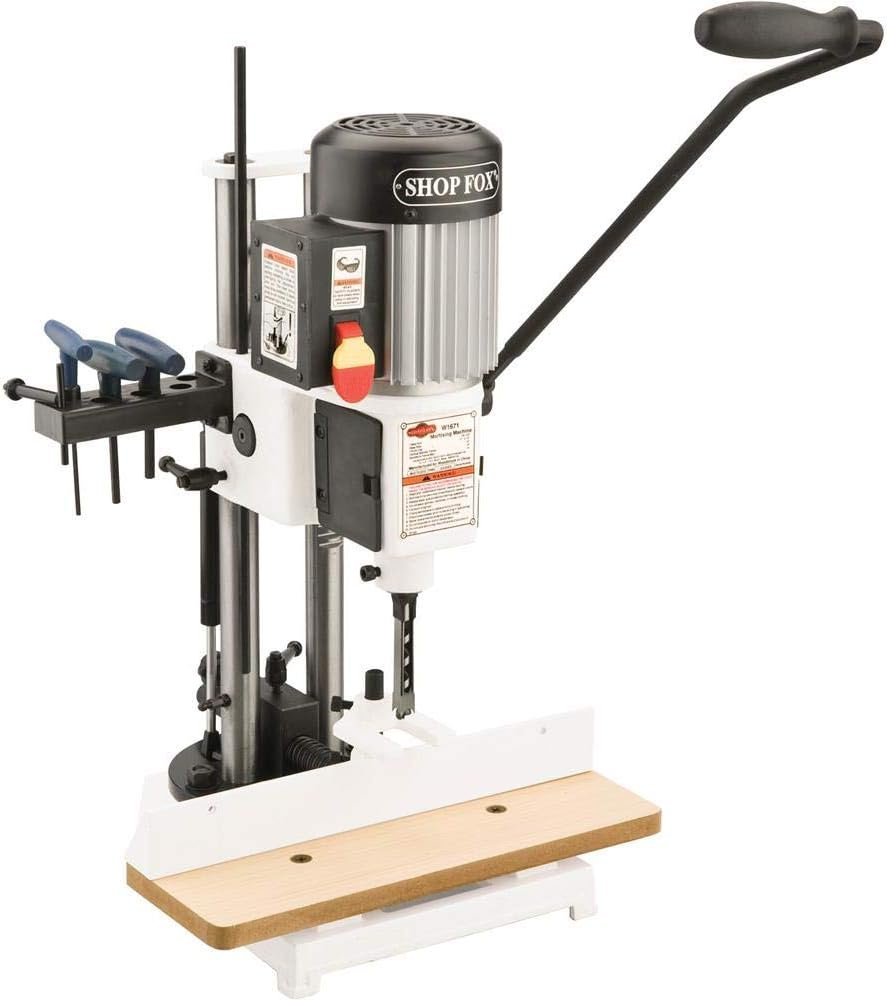

SHOP FOX (W1671) Best Bench Mortiser AS AN ALTERNATIVE
The SHOP FOX Bench Mortiser (W1671) is a heavy duty machine designed for both professional woodworkers and hobbyists seeking precision and reliability in their mortising tasks. Powered by a 3/4 HP motor, this robust tool is built to handle demanding jobs ensuring efficient and accurate performance every time. Its heavy cast-iron construction provides exceptional durability and stability reducing vibration during use for more precise cuts. The SHOP FOX (W1671) features a micro-adjustable fence that allows for fine-tuned adjustments ensuring the accuracy needed for detailed mortising projects.
One of the standout features of the SHOP FOX (W1671) is its ability to mortise lumber up to 187mm (7-3/8″) thick offering greater flexibility in handling larger stock. The extra-long 559mm (22”) quick-set handle provides excellent leverage making it easier to operate even during extended sessions. Additionally, the unique swiveling base allows for off the bench operations adding versatility to your woodworking projects. With double support columns enhancing the machine’s stability you can trust this mortiser to deliver consistent high quality results. The heavy duty fence and hold down mechanism keep your workpiece securely in place minimizing unwanted movement for faster and more accurate mortising.
features
SHOP FOX (W1671) Best Bench Mortiser AS AN ALTERNATIVE
BEST Bench Grinders
tool Specification comparison table
Power Source
Corded Electric
Corded Electric
Corded Electric
Corded Electric
Horsepower
3/4 HP
1/2 HP
Not Available
3/4 HP
Amperage
15.0 Amps
6.0 Amps
5.0 Amps
15.0 Amps
Motor Type
Brushed
Brushed
Brushed
Brushed
Included Components
(1) POWERMATIC Bench Mortiser
(1) 19mm (3/4″) Chisel Bushing
(1) Chuck Extension Adaptor
(1) Chuck Key
(1) Operating Handle
(1) JET Bench Mortiser
(1) Hydraulic Cylinder
(1) Handle
(1) 19mm (3/4″) and 16mm (5/8″) Chisel Bushings
(1) Spindle Extension
(1) Chuck Key
(1) Table
(1) Hold Down
(1) Fence Assembly
(1) 3 Chisels
(1) WEN Bench Mortiser
(3) Chisel Bits 6mm (1/4”), 10mm (3/8”) and 13mm (1/2″)
(1) Chuck Extension Adapter
(1) 19mm (3/4”) Chisel Bushing
(1) Adjustable Handle
(1) Spring-Loaded Cast Iron Fence
(1) Depth Stop
(1) SHOP FOX Bench Mortiser
(1) 13mm (1/2″) Mortising Chisel
Motor Speed
1,725 RPM
1,750 RPM
1,725 RPM
3,450 RPM
Chuck Capacity
13mm (1/2″)
10mm (3/8”)
13mm (1/2″)
13mm (1/2″)
Chisel Shank Capacity
19mm (3/4″)
16mm (5/8”) & 19mm (3/4″)
19mm (3/4″)
16mm (5/8”) & 19mm (3/4″)
Chisel Center to Fence Distance
86mm (4-3/8″)
81mm (3-3/16”)
90mm (3-1/2”)
Not Available
Bushing Sizes
16mm (5/8”) & 19mm (3/4″)
16mm (5/8”) & 19mm (3/4″)
19mm (3/4″)
16mm (5/8”) & 19mm (3/4″)
Capacity Under Hold Down
127mm (5”)
102mm (4”)
102mm (4”)
114mm (4-1/2”), 165mm (6-1/2”), 216mm (8-1/2”)
Fence Size L x H
318mm (12-1/2″) x 67mm (2-5/8″)
350mm (13-3/4”) x 40mm (1-9/16”)
Not Available
Not Available
Base Size
414mm (16-5/16″) x 350mm (13-3/4″)
310mm (12-3/16”) x 194mm (7-5/8”)
254mm (10”) x 203mm (8”)
Not Available
Table Size
Not Available
343mm (13-1/2”) x 153mm (6”)
343mm (13-1/2”) x 153mm (6”)
406mm (16″) x 153mm (6″)
Weight
42kgs (92 lbs.)
24kgs (51 lbs.)
27 kgs (60.3 lbs.)
42kgs (92 lbs.)
Warranty Description
5 Year Limited Warranty
5 Year Limited Warranty
2 Year Limited Warranty
2 Year Limited Warranty
Item Model Number
PM701
JBM-5
43013
W1671
Bench mortisers
0ther ALTERNATIves
what’s in the toolbox
tool
Key points
included components
Horsepower: 1/2 HP
Voltage: 110 Volts
Amperage: 6 Amps
Motor Speed: 1,725 RPM
Chuck Capacity: 10mm (3/8”)
Table Size: 311mm (12-1/4”) x 267mm (10-1/2”)
Warranty Description: 1 Year Limited Warranty
Item Model No.: G0645
(1) GRIZZLY Bench Mortiser
(4) Chisels 6mm (1/4″), 8mm (5/16″), 10mm (3/8″) & 13mm (1/2″)
a Tool for Every Job

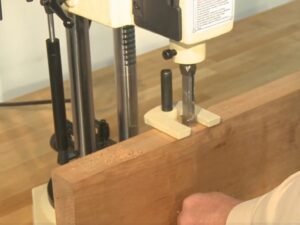

A bench mortiser is a beneficial tool for both tradespeople and DIYers who need to cut precise mortises for strong wood joints. It’s designed to create clean square holes in wood making it much faster and more accurate than hand chiseling. Whether you’re working on furniture, cabinetry or other woodworking projects a mortiser ensures professional level results without the hassle.
These machines are built to handle tough jobs offering powerful motors and sturdy construction to reduce vibration and improve accuracy. Many models come with adjustable settings allowing you to tailor the depth and width of your cuts to meet specific project needs. For woodworkers who value precision, a bench mortiser is a must have in the workshop.
With simple controls and a compact design bench mortisers are easy to use even for those new to woodworking. The tool provides efficiency and precision making it a go to for anyone serious about crafting durable high-quality joints.
BUYERS GUIDE
Bench mortisers
Power and Performance:
When choosing a bench mortiser, power is a critical factor. The motor’s horsepower determines how easily the machine can cut through hardwoods and thicker materials. For tradespeople or serious DIYers a motor with at least 1/2 horsepower is generally recommended to ensure smooth consistent performance. Machines with variable speed settings are ideal for those who work with a range of wood types as they allow you to adjust the speed to suit the density of the material. A well powered mortiser ensures clean, accurate cuts and reduces strain on the motor, giving you longer lasting performance.
Build Quality and Stability:
The size and type of grinding wheels are crucial factors in choosing a bench grinder. Larger wheels such as 205mm (8”) models offer a broader surface area and are better suited for handling larger workpieces and more intensive tasks. The grit of the wheels ranging from coarse to fine determines their suitability for different grinding needs. Coarse grits are ideal for fast material removal and deburring while finer grits are better for honing and achieving a smooth finish. Ensure the grinder you choose has compatible wheels for your specific applications or comes with a range of wheel options.
Build Quality and Durability:
The overall build quality of a bench mortiser plays a big role in its durability and precision. Look for models with a solid cast-iron base and a rigid frame which help reduce vibration and keep the machine stable during operation. This stability is crucial for achieving accurate cuts especially when working on detailed projects. A sturdy machine will also last longer, handling tough jobs without wear and tear on the components. Investing in a well-constructed bench mortiser ensures it can handle demanding tasks while maintaining precision.
Chisels and Bit Compatibility:
Chisel and bit compatibility is another important consideration when purchasing a mortiser. Most machines are designed to work with standard mortising bits but it’s essential to check what sizes and types are supported by the model you’re interested in. High quality chisels and bits will last longer and provide cleaner cuts so investing in good accessories is key to maximizing your mortiser’s performance. Some mortisers also come with a set of chisels included which can be a cost saving advantage when getting started.
Ease of Use and Adjustability:
A bench mortiser should offer features that make it easy to use even for less experienced woodworkers. Look for models with easy to operate controls and quick depth adjustments. Adjustable fences, handles and depth stops are all features that allow you to fine-tune your machine for more accurate and efficient cutting. Some mortisers also feature rotating heads or tilting options, which can add versatility when working on different projects. User-friendly features like these not only speed up your work but also ensure more precise results.
Size and Portability:
Bench mortisers come in various sizes so it’s important to consider the space in your workshop. For smaller workspaces compact models are ideal since they offer the same precision but take up less room. On the other hand larger machines are generally more powerful and stable making them better suited for heavy duty work. If portability is important look for models that are lightweight or easy to move around your shop without sacrificing performance. Choosing the right size for your space and needs will ensure the mortiser integrates smoothly into your workflow.
Chuck and Clamping Mechanism:
A good chuck and clamping mechanism is crucial when selecting a bench mortiser as it affects how securely your workpiece is held in place. A solid clamping system ensures stability preventing the material from shifting while cutting which leads to more accurate mortises. Some machines feature quick release clamps making it easier to adjust and reposition your workpiece without wasting time. Additionally, a high-quality chuck holds the chisel and bit tightly reducing the chance of slippage, ensuring smooth and consistent cuts.
Precision and Depth Control:
Accuracy is key when creating mortises and the best bench mortisers offer fine-tuned control over depth and width. Look for machines with precise depth stops that allow you to set your desired mortise depth consistently. Accurate measurement guides and a smooth operating lever make a big difference in achieving repeatable results especially when producing multiple mortises of the same size. High quality depth control features ensure that your mortises are uniform improving the overall fit and strength of your joints.
Versatility and Additional Features:
Some bench mortisers offer extra versatility such as tilting heads or adjustable fences which allow for more complex mortising tasks. These features provide the flexibility to cut at various angles making it easier to work on angled joints or more intricate designs. While not every project requires these options having them can be a game changer for tradespeople working on custom or advanced woodworking. A mortiser with extra features can enhance the tool’s overall usability and add value by expanding the range of projects you can tackle.
Price and Warranty:
Price is always a consideration especially for DIYers or tradespeople who need to balance quality with budget. Higher end mortisers often come with more features, better build quality and stronger motors making them worth the investment for frequent use or professional work. However, there are also budget-friendly models that offer excellent performance for occasional or hobbyist use. A good warranty can provide peace of mind ensuring that any defects or issues are covered by the manufacturer. Always consider the value of a longer warranty when evaluating the overall cost of a bench mortiser.
