Best Oscillating Spindle SanderS
top picks
Ranking
What’s in the Toolbox
tool
Good Points
tool overVIEW

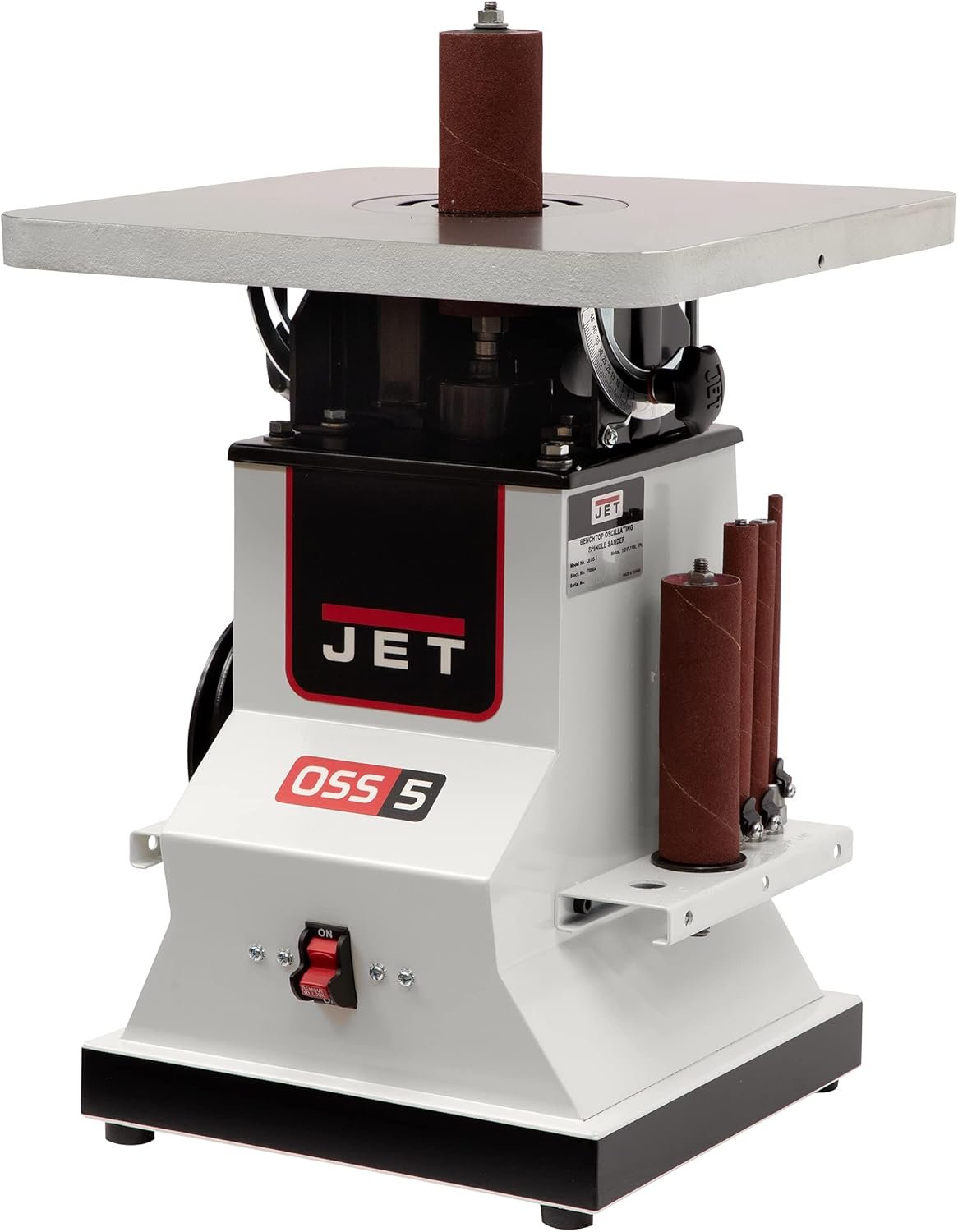

JET (JBOS-5) BEST Oscillating Spindle Sander OVERALL
The JET Oscillating Spindle Sander (JBOS-5) is a powerful and versatile benchtop tool designed to handle various sanding tasks with precision and efficiency. Powered by a 1/2 HP motor, this sander delivers sufficient power to tackle even tough materials making it an excellent addition to any workshop. Its large 368.3mm (14-1/2″) cast iron table provides a stable workspace and can tilt up to 45° allowing for greater flexibility when working on angled edges or other intricate projects.
This spindle sander is equipped with an oscillating bobbin that moves up and down to ensure an even finish preventing burning and extending the life of the abrasive. The machine is supplied with multiple bobbin sizes (6.35 mm, 12.7 mm, 15.88 mm, 38.1 mm, and 50.8 mm) making it adaptable to a wide range of applications. Additionally, a dust extraction outlet at the back helps maintain a clean work environment. The JET (JBOS-5) includes convenient shelves for storing table inserts and abrasives ensuring easy access to everything you need for a smooth workflow. Ideal for woodworking shops, this sander offers exceptional performance for both professionals and hobbyists.
features
JET (JBOS-5) BEST Oscillating Spindle Sander OVERALL
tool overVIEW

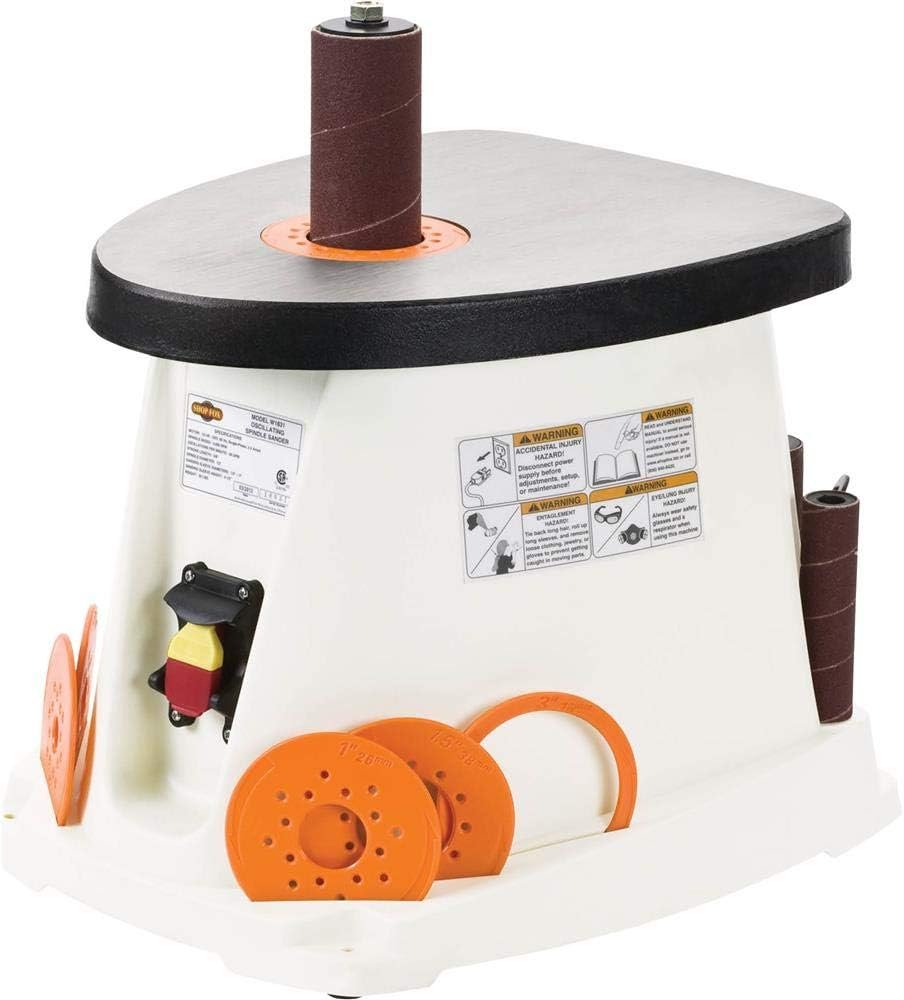

SHOP FOX (W1831) Best Oscillating Spindle Sander RUNNER UP
The SHOP FOX Oscillating Spindle Sander (W1831) is a robust and versatile tool, ideal for smoothing edges and finishing intricate curves after using a bandsaw or scroll saw. Powered by a 1/2 HP motor, this benchtop sander provides ample power to handle a wide range of tasks ensuring efficient and precise sanding. Its oscillating motion with 58 oscillations per minute guarantees even sanding and minimizes wear on the abrasive sleeves, delivering a smooth and consistent finish on all types of workpieces.
The sander includes six different sanding sleeve diameters ranging down to 13mm (1/2″) allowing it to tackle tight inside curves with ease. A precision ground cast iron table offers a stable and durable surface for your projects ensuring accuracy and reliability. The user-friendly design includes a paddle ON/OFF switch with a disabling key adding an extra layer of safety during operation. This safety feature combined with its CSA and UL certifications ensures the SHOP FOX (W1831) meets high standards for both safety and performance.
features
SHOP FOX (W1831) Best Oscillating Spindle Sander RUNNER UP
tool overVIEW
WEN (6510T) Best Oscillating Spindle Sander ON A BUDGET
The WEN Oscillating Spindle Sander (6510T) is a highly efficient tool designed to smooth arcs, curves, contours and irregular shapes with ease. Despite its compact and lightweight design, weighing only 35 lbs. this sander packs a powerful punch with its 1/2 HP 3.5 Amp motor. The spindle moves at up to 58 oscillations per minute and rotates at 2,000 RPM ensuring quick and precise sanding on various materials. The 16mm (5/8”) stroke length provides added control and smoothness to the sanding process making it ideal for detailed work.
The sander comes with six sanding sleeve attachments ranging from 13mm (1/2”) to 76mm (3”) and five rubber drums offering flexibility for a wide range of curves and shapes. Its user-friendly design allows for quick and easy swapping of plates and drums making it a versatile addition to any workshop. Onboard storage keeps all attachments, table inserts and spindle washers organized and within reach. The WEN (6510T) also includes a dust port for connecting a dust extractor helping maintain a clean and safe workspace. This compact yet powerful tool is perfect for both hobbyists and professionals seeking efficient and smooth sanding solutions.
features
WEN (6510T) Best Oscillating Spindle Sander ON A BUDGET
tool overVIEW
GRIZZLY (G0538) Best Oscillating Spindle Sander AS AN ALTERNATIVE
The GRIZZLY Oscillating Spindle Sander (G0538) is a compact yet powerful tool, designed to handle contoured and irregularly shaped workpieces with ease. Powered by a 1/3 HP motor, it offers just the right amount of power for precision sanding tasks. Its benchtop design is ideal for workshops with limited space providing a solid and dependable solution for fine woodworking projects. The 508mm (20”) x 355.6mm (14”) table offers ample space for supporting various workpieces ensuring stability and accuracy during operation.
Equipped with five sanding drum diameters, this sander allows users to switch between drums quickly making it highly adaptable to different sanding needs. The dust collection port, sized at 64mm (2-1/2”) can easily be connected to a dust extraction system to minimize debris and maintain a cleaner working environment. The GRIZZLY (G0538) also comes with an easy to read manual from Grizzly’s U.S.-based Documentation Department ensuring a straightforward assembly and maintenance process. Whether you’re a hobbyist or a professional, the GRIZZLY (G0538) provides excellent performance for those looking for a versatile and space saving spindle sander.
features
GRIZZLY (G0538) Best Oscillating Spindle Sander AS AN ALTERNATIVE
BEST Oscillating Spindle SanderS
tool Specification comparison table
Power Source
Corded Electric
Corded Electric
Corded Electric
Corded Electric
Horsepower
1/2 HP
1/2 HP
1/2 HP
1/3 HP
Amperage
7.5 Amps
3.5 Amps
3.5 Amps
4.0 Amps
Motor Type
Brushed
Brushed
Brushed
Brushed
Included Components
(1) JET Oscillating Spindle Sander
(5) 100-Grit Sanding Sleeves: 6mm (1/4″), 13mm (1/2″), 16mm (5/8″), 38mm (1-1/2″), 51mm (2″)
(4) Table Inserts: 19mm (3/4″) and 25mm (1″) Oblong, 19mm (3/4″) and 25mm (1″) Round
(1) SHOP FOX Oscillating Spindle Sander
(5) Rubber Sanding Drums: 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(6) 80-Grit Sanding Sleeves: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(6) Table Inserts: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(3) Spindle Washers
(1) WEN Oscillating Spindle Sander
(5) Rubber Sanding Drums: 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(6) 80-Grit Sanding Sleeves: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(6) Table Inserts: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(3) Spindle Washers
(1) GRIZZLY Oscillating Spindle Sander
(5) Rubber Sanding Drums: 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
(6) Table Inserts: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″), 76mm (3″)
Spindle Speed (RPM)
1,725 RPM
2,000 RPM
2,000 RPM
1,725 RPM
Spindle Oscillation (OPM)
30 OPM
58 OPM
58 OPM
72 OPM
Length of Oscillation
25.4mm (1”)
16mm (5/8”)
16mm (5/8”)
16mm (5/8”)
Table Size
368.3mm (14-1/2″) x 368.3mm (14-1/2″)
381mm (15”) x 292mm (11-1/2”)
381mm (15”) x 292mm (11-1/2”)
508mm (20”) x 355.6mm (14”)
Table Tilt
0° to 45° Down
Not Available
Not Available
Not Available
Weight
35 kgs (77 lbs.)
13.6 kgs (30 lbs.)
15.8 kgs (35 lbs.)
15.4 kgs (34 lbs.)
Warranty Description
5 Year Warranty, but reduced to 2 Year Warranty for commercial or industrial use
2 Year Limited Warranty
2 Year Limited Warranty
1 Year Limited Warranty
Item Model Number
JBOS-5
W1831
6510T
G0538
Oscillating Spindle SanderS
0ther ALTERNATIves
what’s in the toolbox
tool
Key points
included components
Horsepower: 1 HP
Amperage: 6.0 Amps
Spindle Speed (RPM): 1,725 RPM
Spindle Oscillation (OPM): 72 OPM
Length of Oscillation: 38mm (1-1/2”)
Weight: 130 kgs (287 lbs.)
Warranty Description: 1 Year Limited Warranty
Item Model No.: G1071

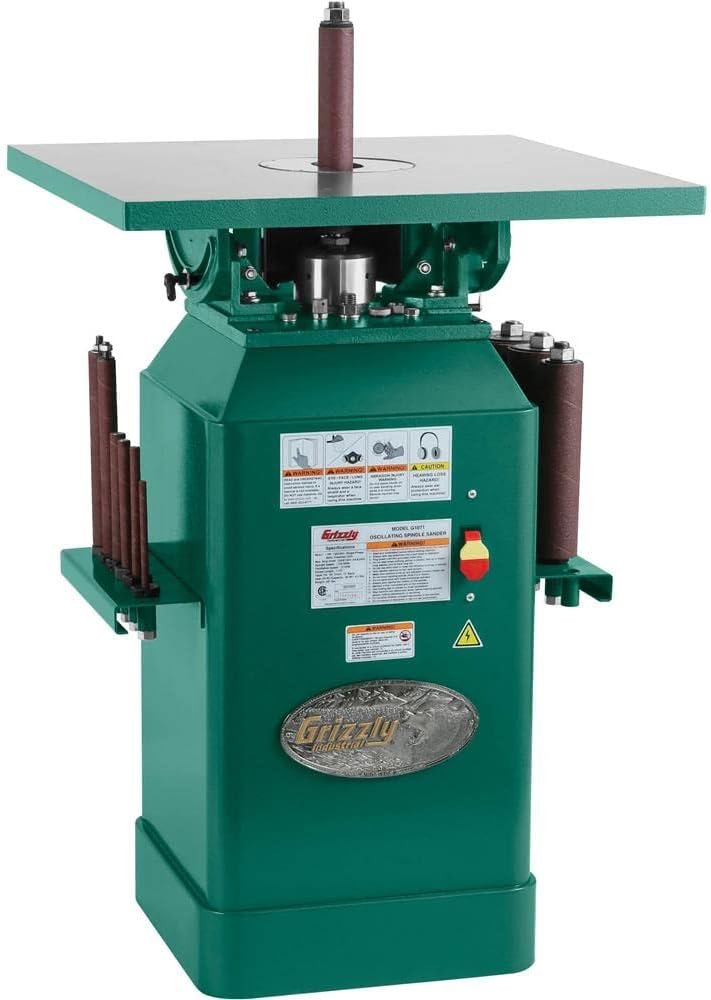

(1) GRIZZLY (G1071) Oscillating Spindle Sander
Horsepower: 1/4 HP
Amperage: 2.6 Amps
Spindle Speed (RPM): 1,725 RPM
Spindle Oscillation (SPM): 30 SPM
Length of Oscillation: 25.4mm (1”)
Weight: 20.8 kgs (46 lbs.)
Warranty Description: 1 Year Limited Warranty
Item Model No.: G0723
(1) GRIZZLY (G0723) Oscillating Spindle Sander
Horsepower: 1/2 HP
Amperage: 3.5 Amps
Spindle Speed (RPM): 2,000 RPM
Spindle Oscillation (SPM): 58 SPM
Length of Oscillation: 16mm (5/8”)
Table Tilt: 0° to 45° Down
Weight: 15 kgs (33.2 lbs.)
Warranty Description: 2 Year Limited Warranty
Item Model No.: AT6535

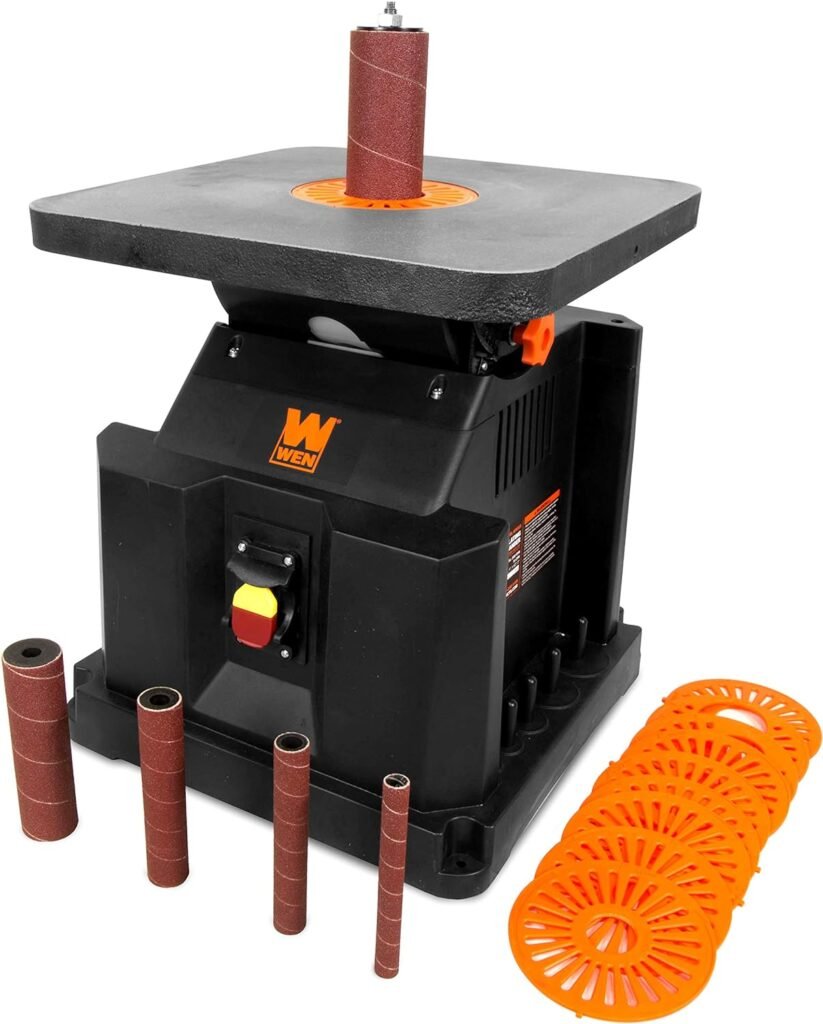

(1) WEN (AT6535) Oscillating Spindle Sander
Horsepower: 1/2 HP
Amperage: 3.5 Amps
Belt Speed (FPM): 1,575 FPM
Spindle Speed (RPM): 2,000 RPM
Spindle Oscillation (SPM): 58 SPM
Length of Oscillation: 16mm (5/8”)
Table Tilt: 0° to 45° Down
Weight: 12.2 kgs (27 lbs.)
Warranty Description: 2 Year Limited Warranty
Item Model No.: 6524

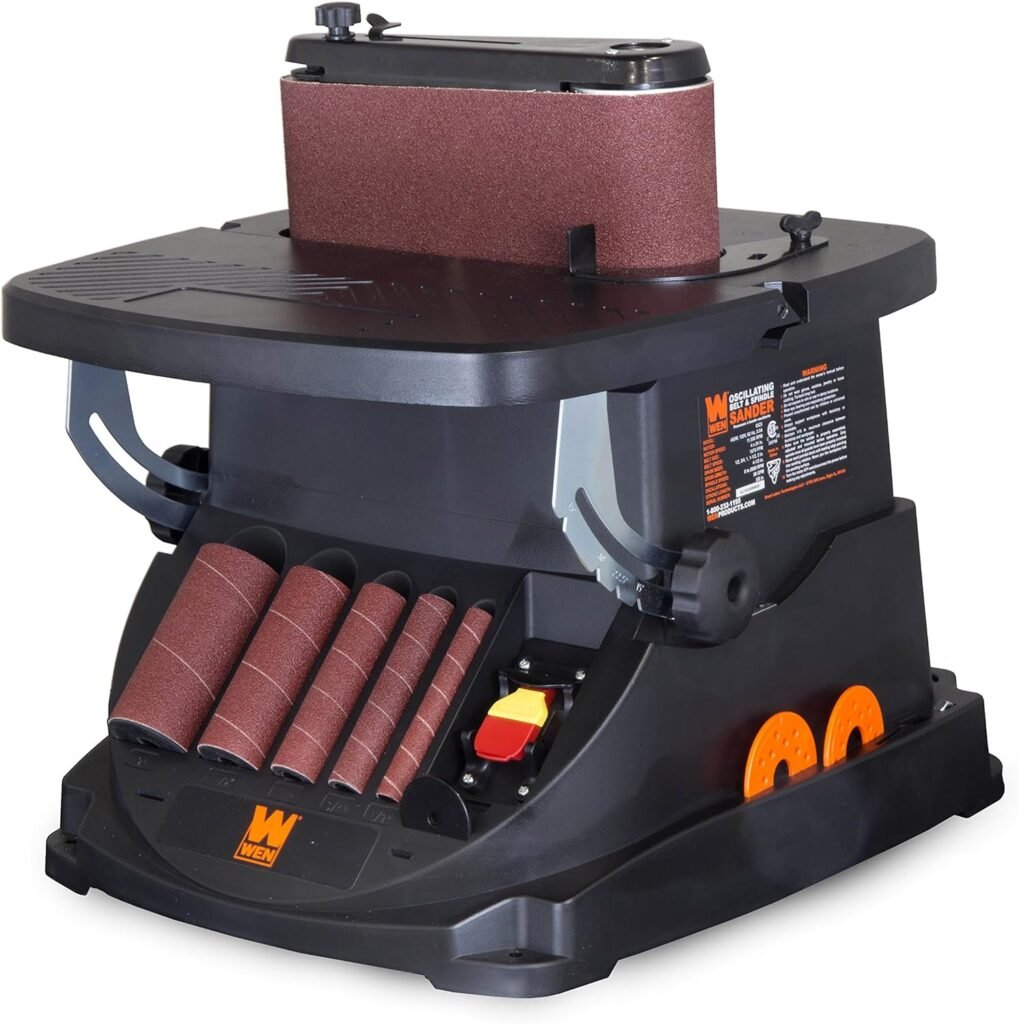

(1) WEN (6524) Oscillating Belt and Spindle Sander
(5) 80-Grit Sanding Sleeves: 13mm (1/2″), 19mm (3/4″), 26mm (1″), 38mm (1-1/2″), 51mm (2″)
(1) 80-Grit Sanding Belt: 100mm (4”) x 610mm (24”)
a Tool for Every Job

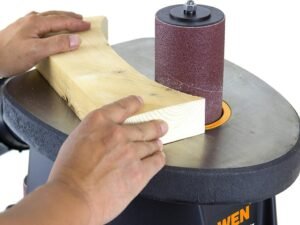

Oscillating spindle sanders are essential tools for tradespeople and DIYers alike, designed to tackle a wide range of sanding tasks with precision. These machines specialize in smoothing out edges, curves and irregular shapes that are difficult to sand by hand or with other tools. The spindle, which oscillates vertically while rotating ensures even wear on the sanding sleeves and reduces the risk of burning the material. This unique motion helps deliver a consistent smooth finish on various surfaces whether working with wood, plastic or metal.
For trades professionals, oscillating spindle sanders offer the power and versatility needed to handle large workloads efficiently. They come with multiple sanding drum sizes allowing for easy transitions between different shapes and contours. Their durable construction and dust collection capabilities make them ideal for workshop environments where cleanliness and precision are priorities.
DIY enthusiasts benefit from the compact designs and user-friendly features such as quick-change sanding drums and onboard storage. Whether you’re working on a detailed furniture project or smoothing out rough cuts from a jigsaw or bandsaw, an oscillating spindle sander provides the control and accuracy you need to achieve professional results in your projects.
BUYERS GUIDE
Oscillating Spindle SanderS
Motor Power and Performance:
When choosing an oscillating spindle sander, one of the most important factors to consider is motor power. The motor’s strength, typically ranging from 1/3 HP to 1 HP will determine how efficiently the sander handles tougher materials. A more powerful motor allows for longer operation without overheating and can tackle harder surfaces like hardwoods or metal with ease. However, for most DIY or light woodworking projects a 1/2 HP motor is generally sufficient. Along with motor power, consider the oscillations per minute (OPM) and rotations per minute (RPM) for smooth and precise sanding. A machine with higher OPM and RPM rates will provide quicker and more even sanding.
Table Size and Adjustability:
The size and adjustability of the worktable are critical for handling a variety of workpieces. Larger tables offer more surface area providing better stability for bigger pieces while adjustable tables that tilt up to 45 degrees allow for more versatile sanding angles. If you work on complex or angled pieces having a table that can tilt will make those tasks much easier. Additionally, a sturdy table often made of cast iron ensures that the machine stays stable during operation reducing vibrations and improving accuracy.
Sanding Sleeves and Drum Sizes:
Versatility in sanding drum sizes is another key feature to evaluate when purchasing an oscillating spindle sander. Most machines come with a range of sanding sleeves from smaller diameters like 13mm (1/2”) to larger ones around 76mm (3”). Having multiple options allows you to adapt the tool to different sanding needs from tight curves to broader surfaces. Look for models that include a variety of drum sizes as standard accessories as this will save you the cost of purchasing additional sleeves later. Some models also offer easy quick-change mechanisms allowing you to switch out sanding sleeves without much downtime.
Dust Collection System:
A good dust collection system is essential for maintaining a clean and safe workspace. When using a spindle sander, a significant amount of dust and debris is generated which can not only make the workshop messy but also pose health risks. Many models come equipped with dust collection ports that can be attached to a vacuum or a dust extractor. This feature ensures that fine particles are removed efficiently reducing cleanup time and creating a healthier environment. Machines with larger dust ports, such as 64mm (2-1/2”) will be more effective at capturing dust.
Durability and Build Quality:
The durability and overall build quality of the oscillating spindle sander should not be overlooked. Machines with a cast iron or heavy duty metal body tend to last longer and offer more stability than those with plastic components. A well-constructed sander will withstand frequent use and provide a solid base for accurate sanding. Additionally, look for models that come with a good warranty as this often reflects the manufacturer’s confidence in the product’s longevity and performance. Durability is especially important for professionals who require a tool that can handle daily use in demanding environments.
Portability and Space Requirements:
If your workshop has limited space or you need to move your tools around frequently, portability is an important consideration. Benchtop oscillating spindle sanders are often compact and designed for easy storage when not in use. Weighing anywhere from 30 to 50 pounds, these models can be moved relatively easily, making them ideal for smaller workshops or for those who need to transport their tools to different job sites. For DIY enthusiasts working in smaller spaces a compact design with a footprint that doesn’t dominate your workbench is a great choice. However, make sure the portability doesn’t come at the cost of stability during use.
Noise Level:
While not always the first consideration, noise level can be an important factor especially if you’re working in a home workshop or shared space. Some oscillating spindle sanders operate quieter than others due to better motor design and construction. Machines with less vibration often produce lower noise levels making them more comfortable to work with over long periods. Consider reading user reviews or checking the product specifications for noise ratings if minimizing sound is important to you. A quieter machine will contribute to a more pleasant working environment, especially for those who work in close proximity to others.
Safety Features:
Safety should always be a priority when working with power tools and oscillating spindle sanders are no exception. Look for models that include safety features like paddle-style ON/OFF switches with disabling keys which prevent accidental start-ups. A well-designed dust collection system also contributes to safety by reducing airborne particles that can be harmful when inhaled. Some models come with overload protection that shuts the machine off in case of excessive use, protecting both the user and the tool. For beginners, safety features are especially important to prevent accidents and ensure a smooth learning experience.
Price and Value:
Price is always a consideration but it’s important to look at value rather than just the upfront cost. While budget-friendly models may be appealing, they often lack the durability or advanced features of more expensive options. Higher-end oscillating spindle sanders tend to come with additional drum sizes, better dust collection systems and more powerful motors making them a worthwhile investment for frequent users. Consider how often you’ll use the machine and the types of projects you’ll be tackling. For occasional use, a mid-range model may provide the best balance between cost and functionality while professionals may benefit from investing in a more premium machine that delivers superior performance and longevity.
